Cooling capacity depends on the outdoor condenser, the indoor coil and the metering device being matched to one another. Pairing a new condenser with an old coil can leave the system short of its rated performance.
Service · Alhambra, CA

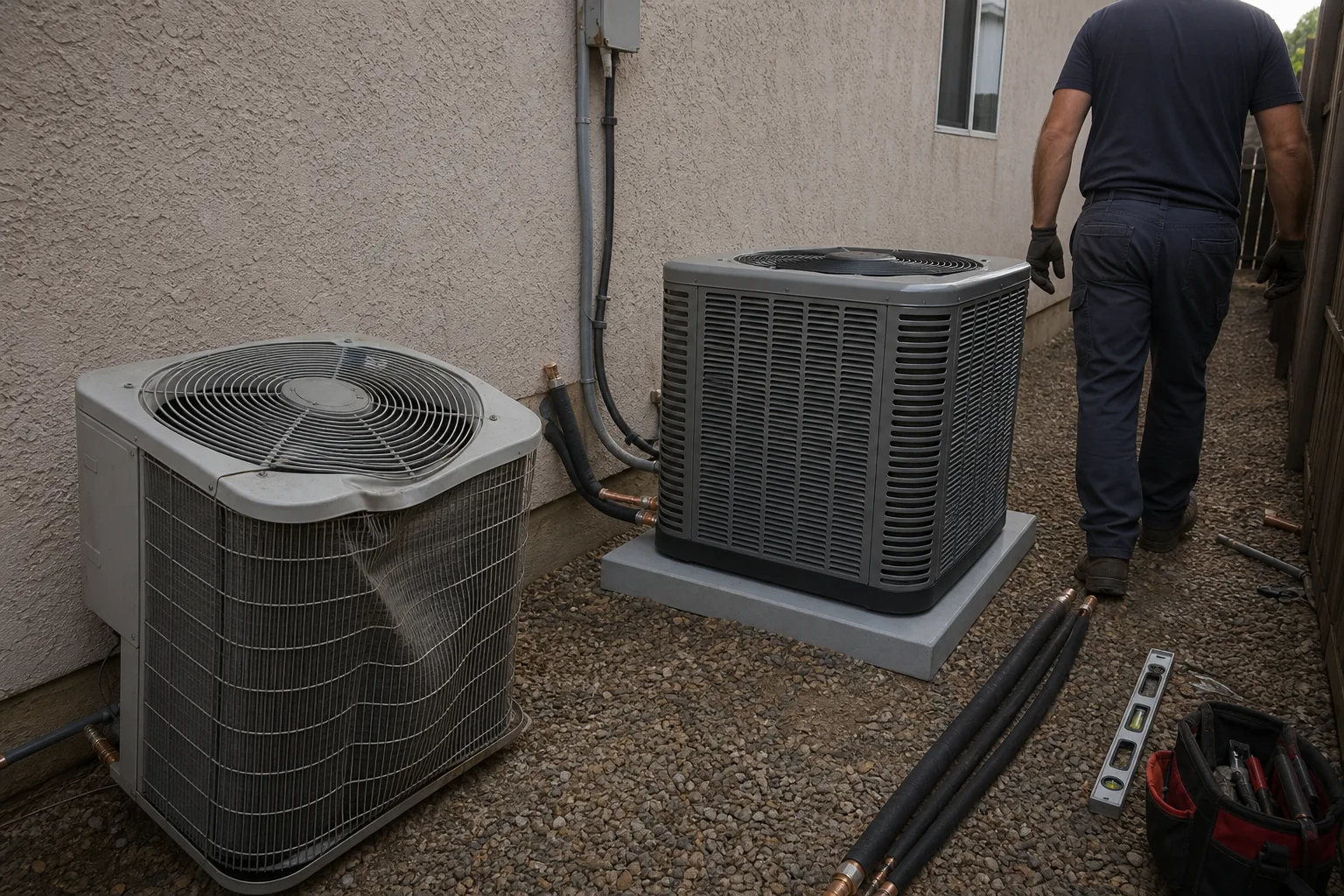

Central AC Replacement in Alhambra, CA
A central air conditioner is replaced when repairs have stopped making sense, and in Alhambra that decision is shaped by the age of the house as much as by the age of the equipment. A replacement is regulated work with a permit, a duct test and a sequence of steps that should all be accounted for.
What you are seeing
When replacement is the right repair
- Failed compressor
The sealed heart of the system has seized or shorted, and the rest of the equipment is old.
- Leaking evaporator coil
Pinhole leaks in aged copper are repaired only with a new coil, and a new coil rarely matches an old condenser.
- Obsolete refrigerant
Systems built for R-22 depend on a refrigerant that is no longer manufactured.
- Repeated failures
The system has needed several repairs and keeps failing.
How it works
Why the condenser, coil and air handler are replaced together
The air handler or furnace is the third part of that match. Its blower must move the right volume of air across the new coil, and the line set between the two must be sound and clean.
Property type
Fitting new equipment into a bungalow
Equipment that fits a modern tract home may not fit a 1950s bungalow. Hall closets, shallow attics and narrow side yards limit the size of the new coil and the clearances around it.
- Duct transitions
The supply plenum is rebuilt to match the new coil and sealed against leakage.
- Condenser pad
A level pad and clearance on all sides keep the new unit serviceable.
- Drain and safety pan
A new condensate line and float switch protect the ceiling below.
Technique
The steps of a replacement
Permit and scope
The technician sizes the equipment on site and pulls the mechanical permit.
Recover and remove
Refrigerant is recovered into a recovery cylinder, then the old equipment comes out.
Set and connect
The new condenser and coil are placed, and the line set is brazed under a nitrogen purge.
Evacuate and weigh in
The circuit is pulled into a deep vacuum, held, and charged by weight.
Startup readings
Temperature split, amperage, superheat and subcooling are recorded.
Duct verification
A third-party rater tests duct leakage and airflow before the permit closes.
Describe the age of the system and what has failed, and the call can set the replacement conversation in order.
(626) 687-0603Phase order
The order a replacement follows
Permit first, then demolition, then the new equipment, then testing. The permit and the third-party duct test are the two milestones that sit outside the installer's crew, so scheduling them early prevents a finished system from waiting on paperwork.
Triage order
Questions to put to the independent technician
- Permit
Who pulls it, and where can the permit number be seen?
- Duct test
Who arranges the rater, and what happens if the ducts fail the leakage test?
- Refrigerant
How is the old charge recovered, and where does it go?
- Scope
Which parts are replaced, and which, such as the line set or thermostat, are reused?
The scope and pricing are set directly between the homeowner and the independent technician.
Local detail
Two local facts that shape an Alhambra replacement
The age of the house and the energy code the City enforces both change what a replacement involves. The two notes below set out how each applies in Alhambra.
- Housing stock · across AlhambraMuch of Alhambra's housing is single-family homes built before 1970, many with ducts that run through the attic.Aged attic ducts leak and lose heating and cooling into the attic, so the system runs longer for less comfort and some rooms never catch up.Say how old the home is and whether the ducts run through the attic, and ask for the ducts to be checked along with the equipment.
Measured results
Startup readings that close the job
- Superheat and subcooling
Gauge readings confirm the refrigerant charge matches what the equipment calls for.
- Airflow
The blower moves the volume of air the coil was matched to across the filter and ducts.
- Duct leakage
The rater's test result stays within the Title 24 limit before the permit is finalized.
Scope: Emergency diagnostic dispatch, whole system replacement and ductwork replacement only. Scope and pricing are provided directly by independent licensed contractors.
Common questions
Questions about central AC replacement in Alhambra
Does central AC replacement cover 91801, 91803 and 91804?
Yes. Replacement guidance here covers Alhambra homes in those three ZIP codes, in Los Angeles County.
Does replacing a central AC need a permit in Alhambra?
Yes. A full replacement is permitted through the City of Alhambra Building Division and is subject to California's Title 24 energy standards.
Why is a duct test part of a replacement?
Title 24 requires leakage verification on many ducted replacements because leaking ducts waste most of the capacity of the new equipment.
Can I keep my old ductwork?
Sometimes, if it passes the leakage test. Failing ducts must be sealed or replaced before the permit can close.
