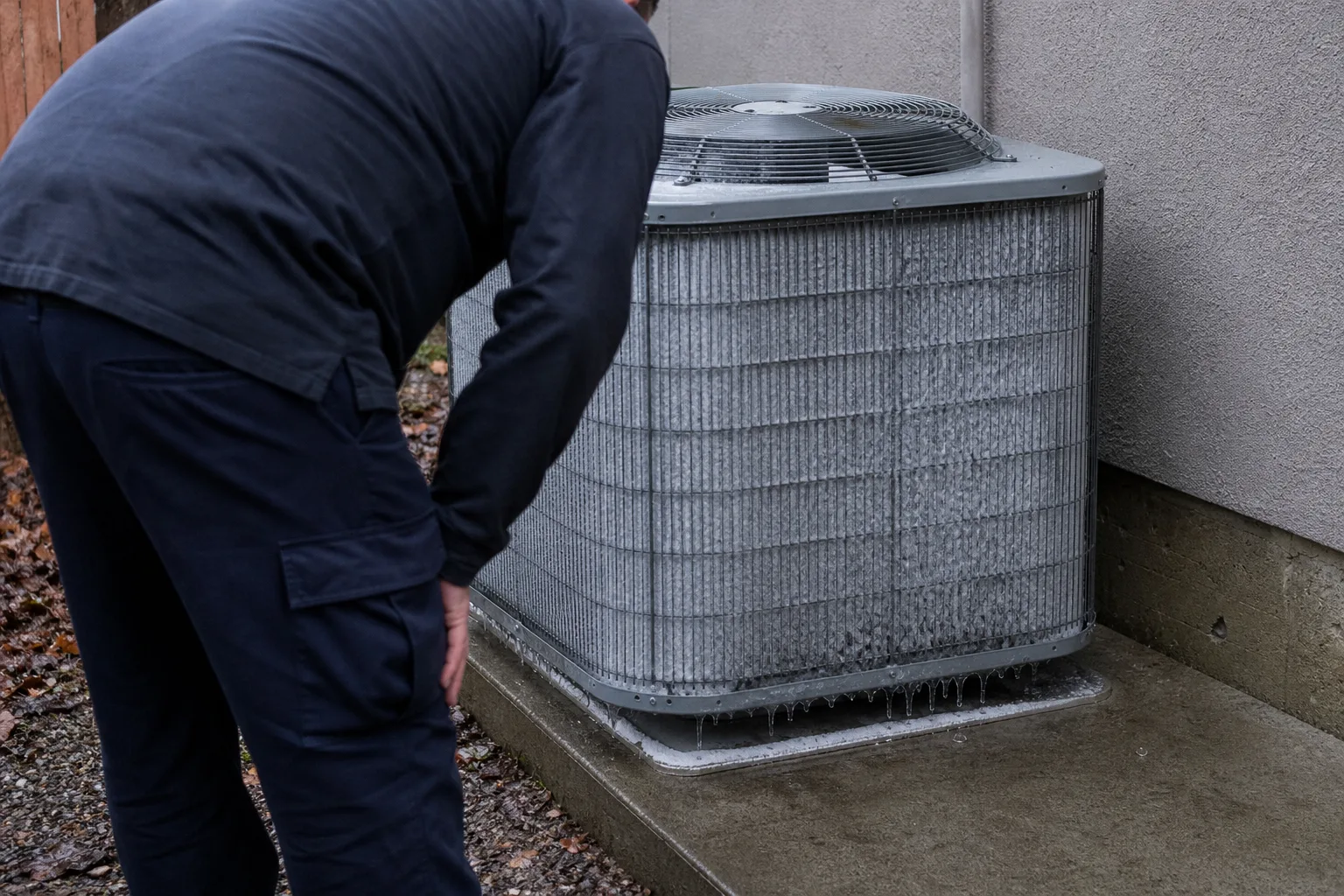

In heating mode the outdoor coil acts as the evaporator and runs below the outdoor air temperature. When the air is cool and humid, moisture condenses on the coil and freezes into frost.
Service · Alhambra, CA
Heat Pump Outdoor Unit Icing in Alhambra, CA
Some frost on a heat pump outdoor unit is part of normal heating, because the coil runs colder than the air around it. A solid, growing block of ice is a different thing and means the defrost system, the airflow or the charge has failed.
What you are seeing
Frost, ice and the difference between them
- Light frost
A thin white layer that appears on cool, damp mornings and clears on its own.
- Heavy frost
The whole coil is white and the fan struggles, a sign the defrost is not keeping up.
- Solid ice
A block fills the coil and the base pan, and airflow is nearly gone.
- Ice below the unit
Meltwater has frozen in the base pan and built up under the coil.
How it works
Why the outdoor coil frosts in heating mode
A defrost control normally clears it by reversing the cycle for a few minutes. If that control, its sensor or the meltwater drain fails, frost accumulates into ice.
Low refrigerant charge makes this worse, because a coil running far colder than design freezes even when the defrost control works.
Property type
Why Alhambra frosts less often but gets caught off guard
Alhambra rarely sees hard freezes, so households do not expect ice on an outdoor unit. Frost forms on cool, humid mornings in the thirties and forties when the marine layer sits over the San Gabriel Valley.
- Leaf litter
Debris in the base pan blocks drainage and freezes in place.
- Close walls
Cool air stagnating beside a wall cuts airflow across the coil.
- Ground-level pads
A unit sitting flat on a pad with no gap holds meltwater under it.
Technique
How an icing problem is traced
Melt it safely
The system is switched to fan only or off so the ice melts without force.
Check airflow
Coil fins, fan blade and the space around the unit are cleared.
Check drainage
The base pan drain openings and the pad slope are examined.
Test the defrost control
The board and coil sensor are tested through a forced defrost.
Check the charge
Pressures show whether low charge is chilling the coil too far.
Describe how much ice is on the unit and whether the fan is turning, and the call can say how to proceed.
(626) 687-0603Phase order
Melt, find the cause, then restore heating
The ice must melt before the unit can be measured accurately, and chipping it off risks puncturing the coil. Once the coil is clear, the defrost logic is tested to see why it did not run.
If the ice returns within days of the repair, the cause shifts from drainage or airflow toward the defrost control or a sealed-system leak.
Local detail
The marine layer and winter frost
Cool, damp mornings under the marine layer give Alhambra heat pumps their heaviest frost, even without a hard freeze. Los Angeles County households first see it in the weeks after the first real cold snap.
Measured results
Signs the icing is solved
- Defrost runs
The cycle starts when frost builds and ends when the coil is clear.
- Drain flows
Meltwater leaves the base pan and does not refreeze.
- Light frost only
After several heating cycles no heavy buildup forms.
Safety protocol
What to do about ice on the outdoor unit
- Do not chip
Tools can puncture the coil or crack the base pan.
- No hot water
A kettle or hose can refreeze and shock the coil.
- Clear debris
Leaves and objects around the unit can be removed by hand with the power off.
- Switch off if the fan is blocked
A frozen fan blade can overload its motor.
Triage order
What each cause leads to
- Blocked drain
The base pan is cleared and the unit is raised off a flat pad if it sits too low.
- Failed sensor
The coil sensor is replaced and the defrost sequence retested.
- Bad control board
The board is replaced when it does not start or end a cycle.
- Low charge
The leak is located and repaired before the circuit is charged by weight.
Scope: Emergency diagnostic dispatch, whole system replacement and ductwork replacement only. Scope and pricing are provided directly by independent licensed contractors.
Common questions
Questions about ice on an Alhambra heat pump
Is icing diagnosed in 91801, 91803 and 91804?
This guidance covers Alhambra homes in ZIP codes 91801, 91803 and 91804.
Is frost on my heat pump normal?
A light layer on a cold, damp morning is normal. Heavy frost or solid ice that persists is not.
Can I pour warm water on the ice?
No. Warm water can refreeze and stress the coil. Switching the system to fan only is safer.
Why does the heat pump ice up but my neighbor's does not?
Differences in airflow, drainage, pad height and the condition of the defrost control all change how much frost builds.
A heating or cooling fault rarely fixes itself.
Call and describe the problem in Alhambra: what the system is doing, what it did first and how old the equipment is.
