Permit first, installation second, testing third. Combustion and leak tests are performed before the furnace is left running, and a City final closes the permit. Neither step is skipped on a cold night, because a furnace that has not been tested is not finished.
Service · Alhambra, CA
Furnace Installation in Alhambra, CA
A furnace replacement is more than lifting one cabinet out and another in. The new unit has to match the ducts, the flue and the gas supply, and in Alhambra it has to pass through a permit.
What you are seeing
When a furnace needs to be replaced
- Cracked heat exchanger
A confirmed crack makes the furnace unsafe to run.
- End of life
Repeated failures on a unit past its service life.
- Mismatched blower housing
An air conditioner replacement has changed the coil, and the furnace cabinet no longer fits the match.
This page covers like-for-like replacement of a gas furnace on the existing gas supply.
How it works
What has to match: input, airflow and venting
A furnace is chosen to match the heating load of the house, the airflow of the duct system and the venting that carries combustion gases outside. The independent technician sizes it on site rather than copying the old nameplate.
- Input rating
The burner input is matched to the space and the duct capacity.
- Airflow
The blower speed is set so the temperature rise stays in the range on the nameplate.
- Venting category
Older units vent hot gas through metal flue pipe, while condensing units use plastic pipe and a drain.
Property type

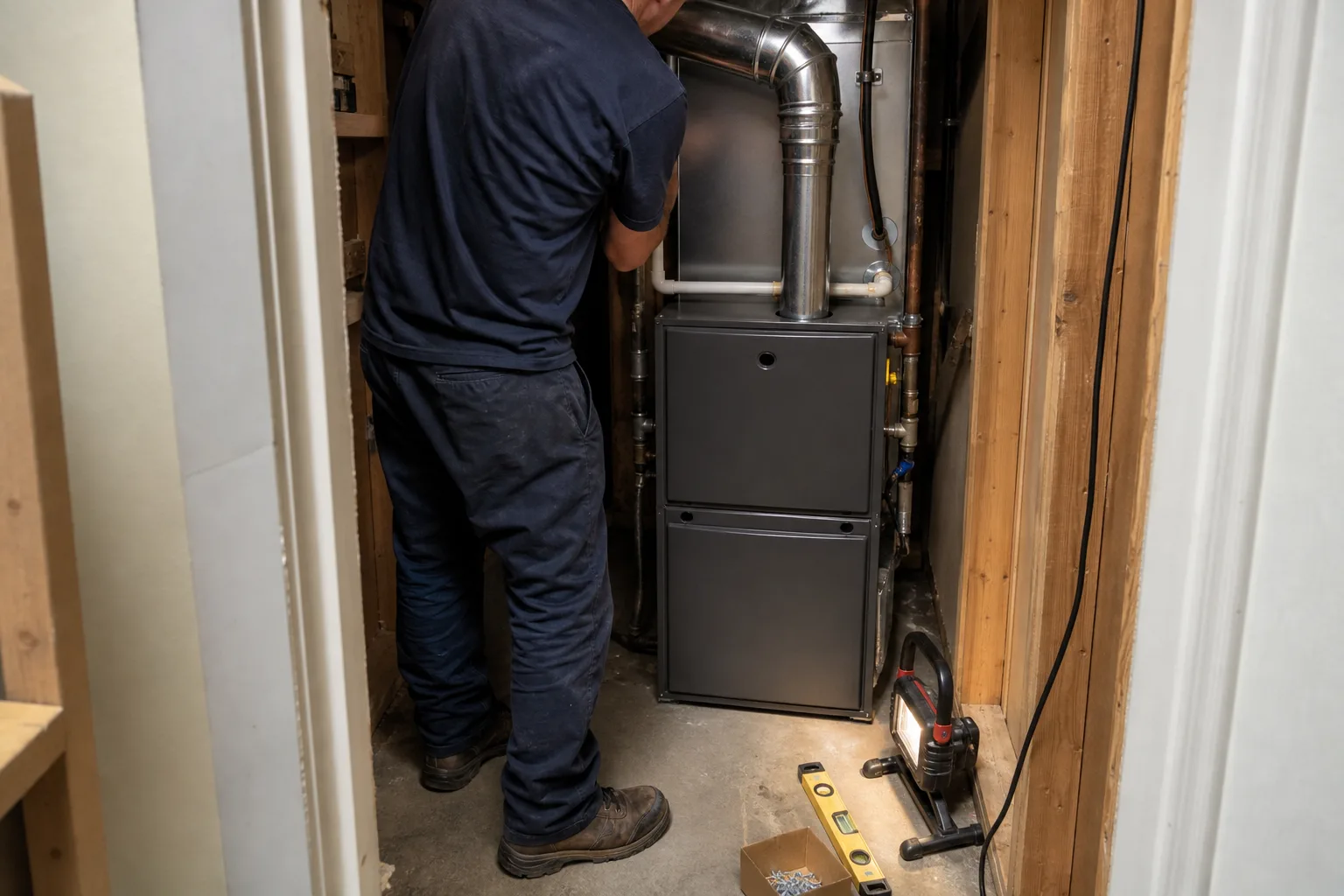

Fitting a furnace into a bungalow closet or attic
Space is the limit in older Alhambra homes. A hall closet, a raised attic platform or a crawlspace each sets what can be installed and how it must be supported and accessed.
- Closet clearance
The cabinet needs the clearances printed on its label.
- Attic platform
A solid platform, drain pan and service path keep the unit safe and reachable.
- Roof jack
A new flue section may need to meet the existing roof penetration.
- Seismic strapping
Gas appliances in Southern California are braced so a tremor does not shift the unit and strain its connections.
Technique
The steps of a furnace installation
Permit
The technician files the mechanical permit with the City.
Shut off and remove
Gas and power are shut off, and the old furnace is disconnected and removed.
Set and level
The new cabinet is placed, leveled and sealed to the plenum.
Vent and drain
The flue or plastic vent pipe is run, and a condensate line is added for condensing models.
Gas and electrical
The unit is connected to the existing supply and the control wiring, then checked for leaks.
Fire and measure
Burners are lit and readings are recorded.
Describe the age and location of the furnace and what failed, and the call can set the replacement conversation in order.
(626) 687-0603Phase order
Permit, setting, testing: the working order
Measured results
Measurements taken before the furnace is left running
- Gas leak test
Every new connection is checked with a leak solution or a detector.
- Gas pressure
Manifold pressure matches the value on the nameplate.
- Combustion
Carbon monoxide and flue temperature are within the furnace's limits.
- Temperature rise
Supply air sits in the nameplate range above return air.
Local detail
Replacing a furnace in older Alhambra homes
Older homes in Alhambra, Los Angeles County, often hide the details that complicate a swap: a worn flue, a tight closet or a low-capacity return. Naming the home's age and where the furnace sits helps the technician plan the job accurately.
Documentation
Permits, Title 24 and the City of Alhambra Building Division
A furnace replacement is permitted work under California's Title 24, and the City of Alhambra Building Division issues and finalizes the permit. If the ducts are altered, a third-party rater verifies their leakage as well.
Ask which technician files the permit and books the City final before agreeing to the work. Scope and pricing are agreed directly with the independent technician.
Scope: Emergency diagnostic dispatch, whole system replacement and ductwork replacement only. Scope and pricing are provided directly by independent licensed contractors.
Common questions
Questions about furnace installation in Alhambra
Are replacements offered for 91801, 91803 and 91804 homes?
Yes. Furnace installation guidance covers Alhambra homes in those three ZIP codes.
Does a furnace replacement need a permit in Alhambra?
Yes. The mechanical permit is issued by the City of Alhambra Building Division, and Title 24 applies.
Can a new furnace use the old flue?
Sometimes. The flue must be sound, correctly sized for the new furnace and without corrosion, and a condensing model needs plastic vent pipe instead.
Why is a combustion test done after installation?
It confirms that the burners are firing cleanly, the carbon monoxide level is safe and the gas pressure matches the nameplate.
